產(chǎn)品詳情

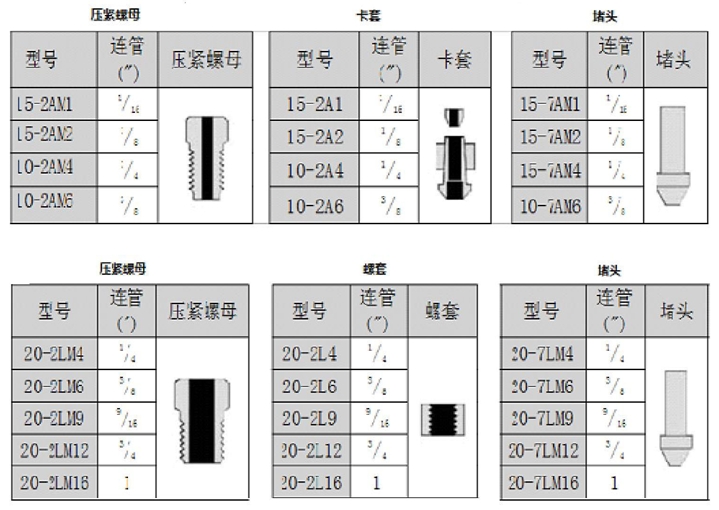

HIP管路連接件（三通四通接頭等）

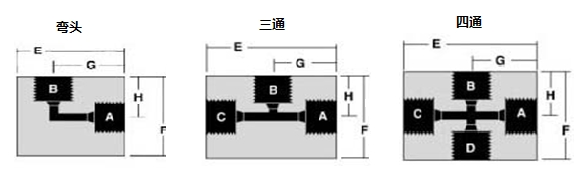

HIP彎頭
|
型號 |
MPA |
連接 |
A-B |
E (") |
F (") |
G (") |
H (") |
厚(") |
|
15-22AF1 |
103 |
1/16" O.D.TUBE |
AF1 |
3/4 |
3/4 |
9/16 |
9/16 |
3/8 |
|
15-22AF2 |
103 |
1/8" O.D.TUBE |
AF2 |
11/8 |
11/8 |
3/4 |
3/4 |
3/4 |
|
15-22AF4 |
69 |
1/4" O.D.TUBE |
AF4 |
11/2 |
11/2 |
1 |
1 |
1 |
|
15-22AF6 |
69 |
3/8" O.D.TUBE |
AF6 |
11/2 |
11/2 |
1 |
1 |
1 |
|
20-22LF4 |
138 |
1/4" O.D.TUBE |
LF4 |
13/16 |
1 |
7/8 |
11/16 |
5/8 |
|
20-22LF6 |
138 |
3/8" O.D.TUBE |
LF6 |
13/8 |
13/8 |
1 |
1 |
3/4 |
|
20-22LF8 |
138 |
9/16" O.D.TUBE |
LF8 |
13/4 |
13/4 |
11/4 |
11/4 |
1 |
|
20-22LF12 |
138 |
3/4" O.D.TUBE |
LF12 |
21/4 |
21/4 |
11/2 |
11/2 |
13/8 |
|
20-22LF16 |
138 |
1" O.D.TUBE |
LF16 |
3 |
3 |
21/16 |
21/16 |
13/4 |
|
60-22HF2 |
414 |
1/8" O.D.TUBE |
HF2 |
11/8 |
11/8 |
3/4 |
3/4 |
3/4 |
|
60-22HF4 |
414 |
1/4" O.D.TUBE |
HF4 |
13/8 |
11/2 |
7/8 |
1 |
1 |
|
60-22HF6 |
414 |
3/8" O.D.TUBE |
HF6 |
1 3/4 |
1 1/2 |
1 1/4 |
1 |
1 |
|
60-22HF9 |
414 |
9/16" O.D.TUBE |
HF9 |
25/8 |
11/2 |
17/8 |
11/8 |
11/2 |
|
40-22HF9 |
276 |
9/16" O.D.TUBE |
HF9 |
25/8 |
17/8 |
11/8 |
11/8 |
11/2 |
|
30-22HF16 |
138 |
1" O.D.TUBE |
HF16 |
3 |
3 |
21/16 |
21/16 |
13/4 |
|
100-22XF4 |
690 |
1/4" O.D.TUBE |
XF4 |
13/4 |
13/4 |
11/4 |
11/4 |
1 |
|
150-22XF6 |
1034 |
3/8" O.D.TUBE |
XF6 |
25/8 |
25/8 |
13/4 |
13/4 |
11/2 |
HIP三通
|
型號 |
MPA |
連接 |
A-B |
E(") |
F(") |
G(") |
H(") |
厚(") |
|
15-23AF1 |
103 |
1/16" O.D.TUBE |
AF1 |
1 |
3/4 |
1/2 |
9/16 |
3/8 |
|
15-23AF2 |
103 |
1/8" O.D.TUBE |
AF2 |
11/2 |
11/8 |
3/4 |
3/4 |
3/4 |
|
15-23AF4 |
69 |
1/4" O.D.TUBE |
AF4 |
2 |
11/2 |
1 |
1 |
1 |
|
15-23AF6 |
69 |
3/8" O.D.TUBE |
AF6 |
2 |
11/2 |
1 |
1 |
1 |
|
20-23LF4 |
138 |
1/4" O.D.TUBE |
LF4 |
13/4 |
1 |
7/8 |
11/16 |
5/8 |
|
20-23LF6 |
138 |
3/8" O.D.TUBE |
LF6 |
2 |
13/8 |
1 |
1 |
3/4 |
|
20-23LF9 |
138 |
9/16" O.D.TUBE |
LF8 |
2 1/2 |
13/4 |
11/4 |
11/4 |
1 |
|
20-23LF12 |
138 |
3/4" O.D.TUBE |
LF12 |
3 |
21/4 |
11/2 |
11/2 |
13/8 |
|
20-23LF16 |
138 |
1" O.D.TUBE |
LF16 |
41/8 |
3 |
21/16 |
21/16 |
13/4 |
|
60-23HF2 |
414 |
1/8" O.D.TUBE |
HF2 |
11/2 |
11/8 |
3/4 |
3/4 |
3/4 |
|
60-23HF4 |
414 |
1/4" O.D.TUBE |
HF4 |
2 |
13/8 |
1 |
7/8 |
1 |
|
60-23HF6 |
414 |
3/8" O.D.TUBE |
HF6 |
2 |
19/16 |
1 |
11/16 |
1 |
|
60-23HF9 |
414 |
9/16" O.D.TUBE |
HF9 |
25/8 |
21/8 |
15/16 |
13/8 |
11/2 |
|
40-23HF9 |
276 |
9/16" O.D.TUBE |
HF9 |
25/8 |
21/8 |
15/16 |
13/8 |
11/2 |
|
30-23HF16 |
138 |
1" O.D.TUBE |
HF16 |
41/8 |
3 |
21/16 |
21/16 |
13/4 |
|
100-23XF4 |
690 |
1/4" O.D.TUBE |
XF4 |
21/2 |
13/4 |
11/4 |
11/4 |
1 |
|
150-23XF6 |
1034 |
3/8" O.D.TUBE |
XF6 |
31/2 |
25/8 |
13/4 |
13/4 |
11/2 |
HIP四通
|
型號 |
MPA |
連接 |
A-B |
E (") |
F (") |
G (") |
H(") |
厚(") |
|
15-24AF1 |
103 |
1/16" O.D.TUBE |
AF1 |
1 |
1 |
1/2 |
1/2 |
3/8 |
|
15-24AF2 |
103 |
1/8" O.D.TUBE |
AF2 |
11/2 |
11/2 |
3/4 |
3/4 |
3/4 |
|
15-24AF4 |
69 |
1/4" O.D.TUBE |
AF4 |
2 |
2 |
1 |
1 |
1 |
|
15-24AF6 |
69 |
3/8" O.D.TUBE |
AF6 |
2 |
2 |
1 |
1 |
1 |
|
20-24LF4 |
138 |
1/4" O.D.TUBE |
LF4 |
13/4 |
13/8 |
7/8 |
11/16 |
5/8 |
|
20-24LF6 |
138 |
3/8" O.D.TUBE |
LF6 |
2 |
2 |
1 |
1 |
3/4 |
|
20-24LF9 |
138 |
9/16" O.D.TUBE |
LF8 |
21/2 |
21/2 |
11/4 |
11/4 |
1 |
|
20-24LF12 |
138 |
3/4" O.D.TUBE |
LF12 |
3 |
3 |
11/2 |
11/2 |
13/8 |
|
20-24LF16 |
138 |
1" O.D.TUBE |
LF16 |
41/8 |
41/8 |
21/16 |
21/16 |
13/4 |
|
60-24HF2 |
414 |
1/8" O.D.TUBE |
HF2 |
11/2 |
11/2 |
3/4 |
3/4 |
3/4 |
|
60-24HF4 |
414 |
1/4" O.D.TUBE |
HF4 |
2 |
11/2 |
1 |
3/4 |
1 |
|
60-24HF6 |
414 |
3/8" O.D.TUBE |
HF6 |
11/8 |
2 |
11/16 |
1 |
1 |
|
60-24HF9 |
414 |
9/16" O.D.TUBE |
HF9 |
23/4 |
25/8 |
13/8 |
15/16 |
11/2 |
|
40-24HF9 |
276 |
9/16" O.D.TUBE |
HF9 |
23/4 |
25/8 |
13/8 |
15/16 |
11/2 |
|
30-24HF16 |
138 |
1" O.D.TUBE |
HF16 |
41/8 |
41/8 |
21/16 |
21/16 |
13/4 |
|
100-24XF4 |
690 |
1/4" O.D.TUBE |
XF4 |
21/2 |
13/4 |
11/4 |
11/4 |
1 |
|
150-24XF6 |
1034 |
3/8" O.D.TUBE |
XF6 |
31/2 |
31/2 |
13/4 |
13/4 |
11/2 |
